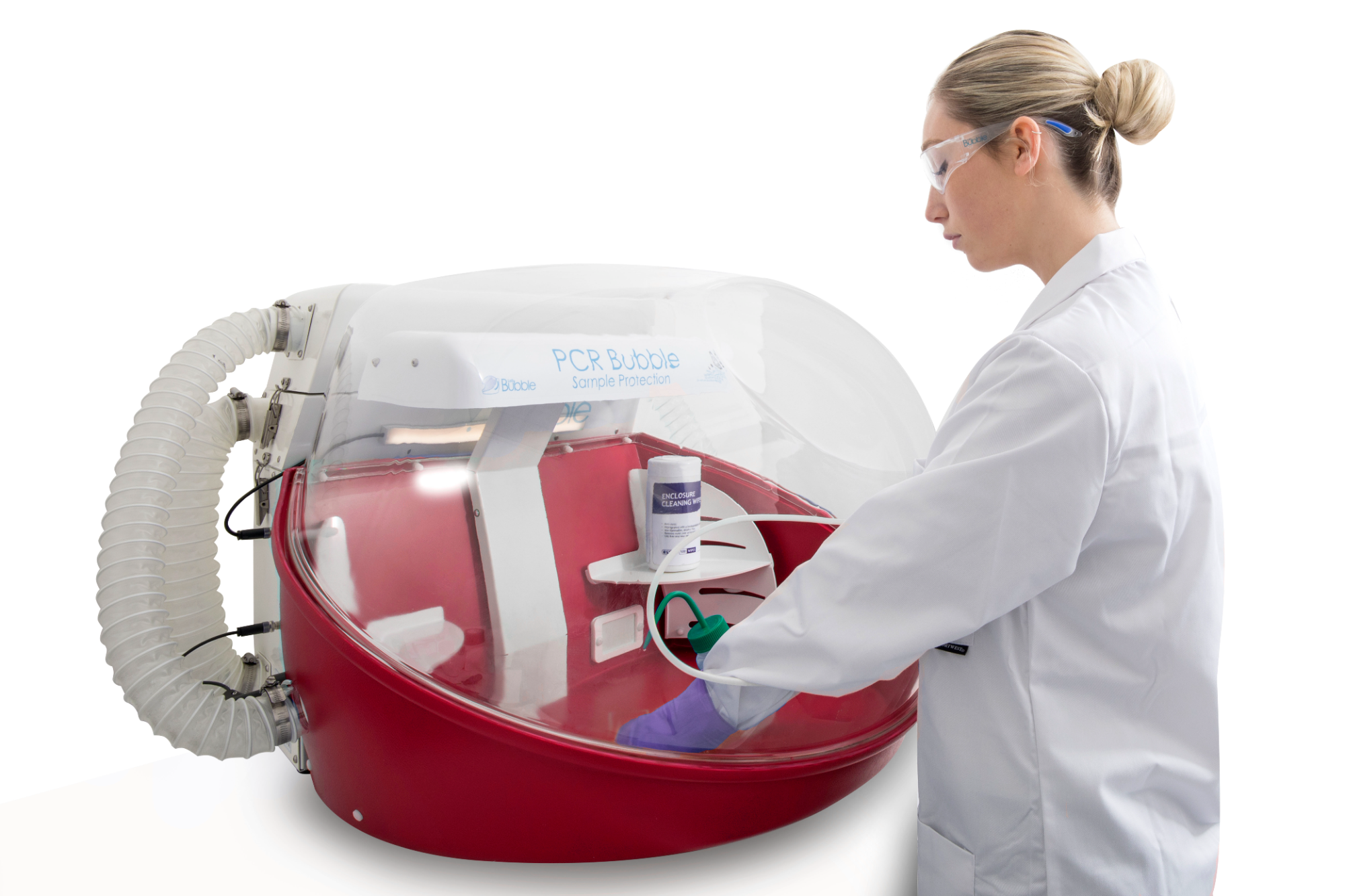

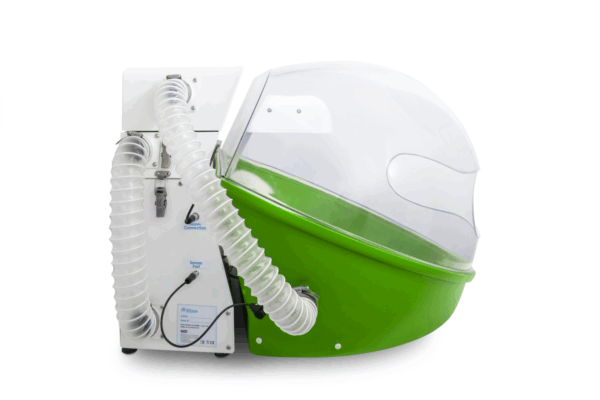

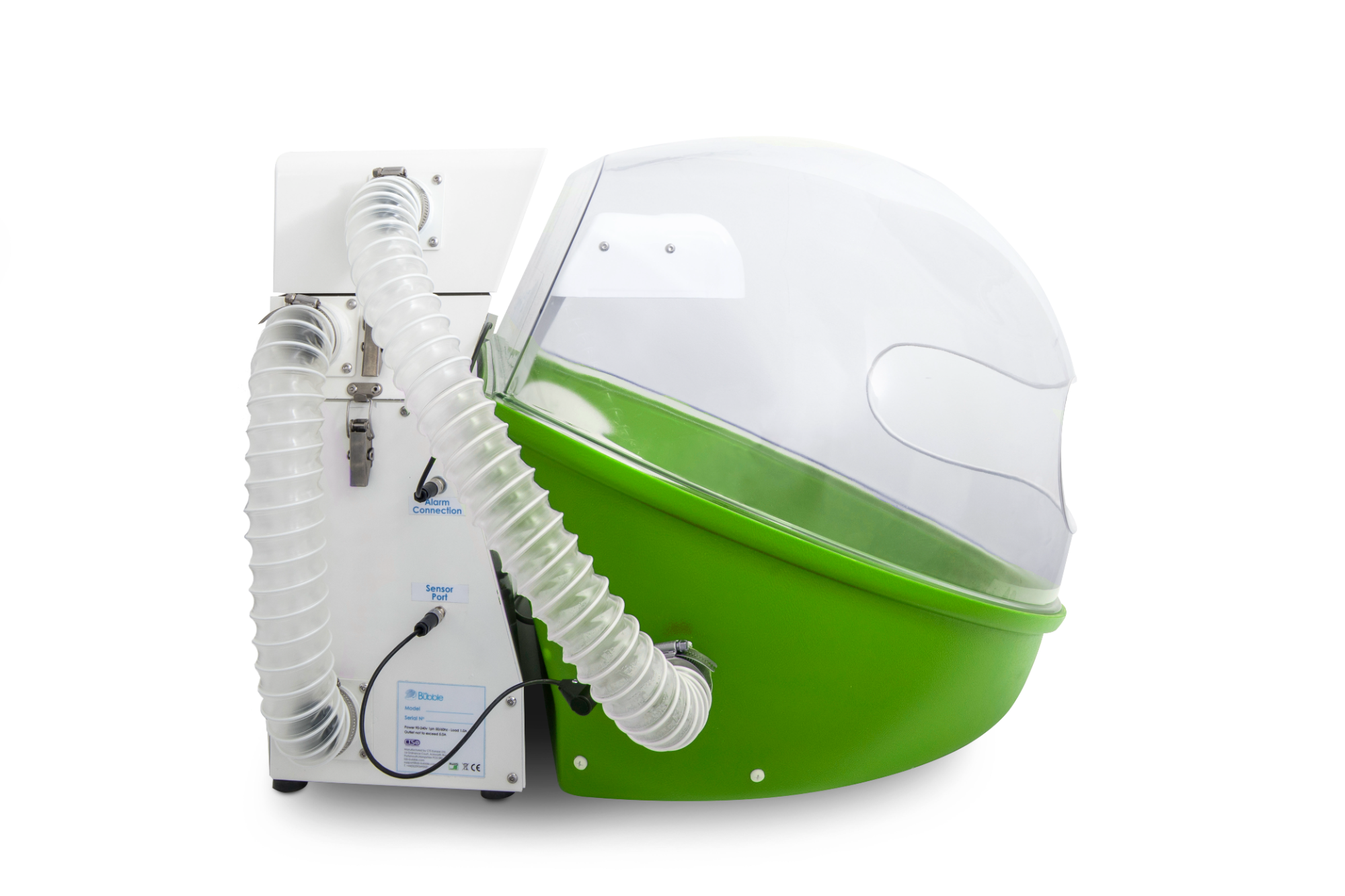

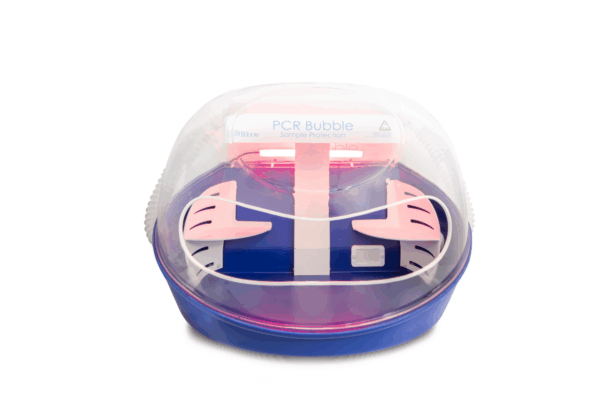

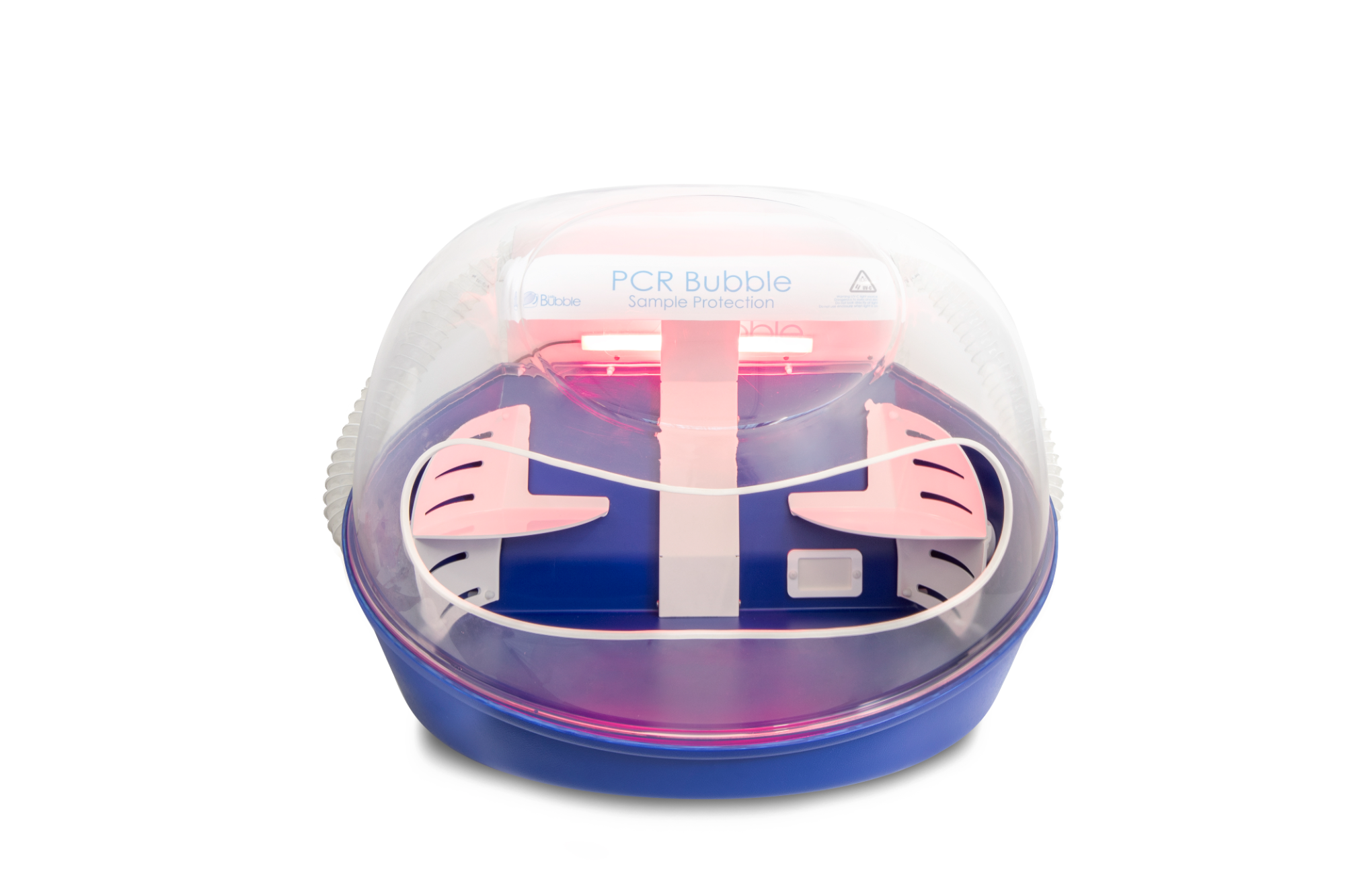

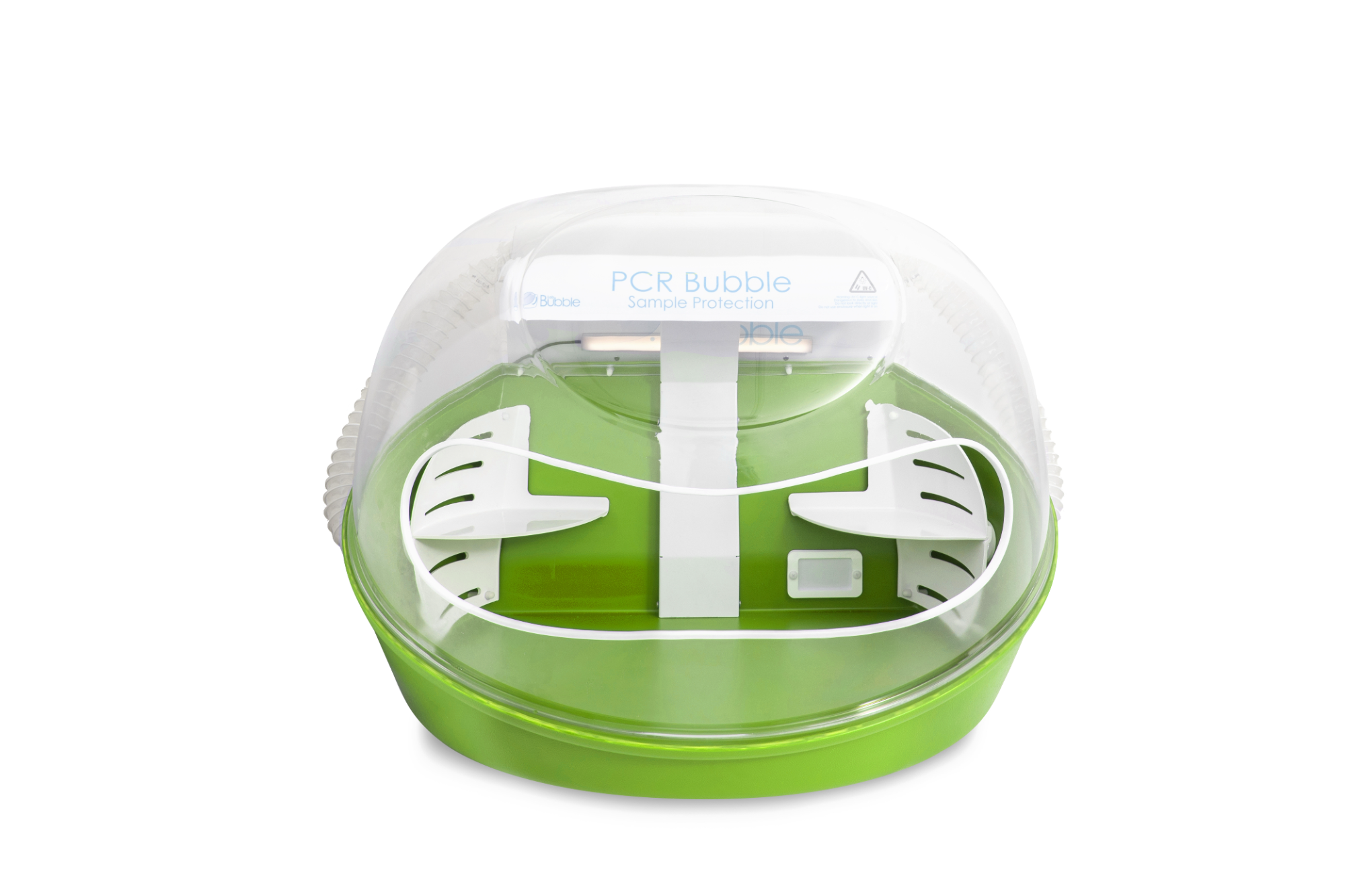

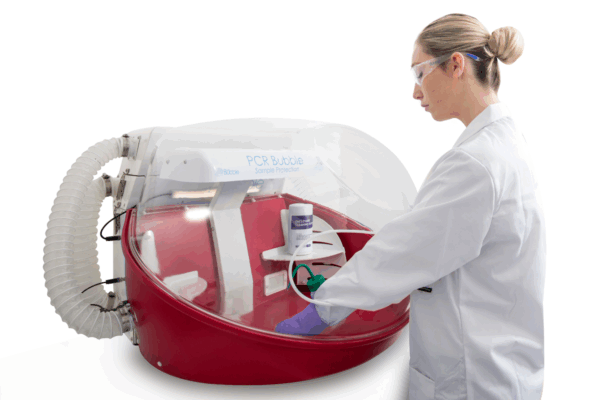

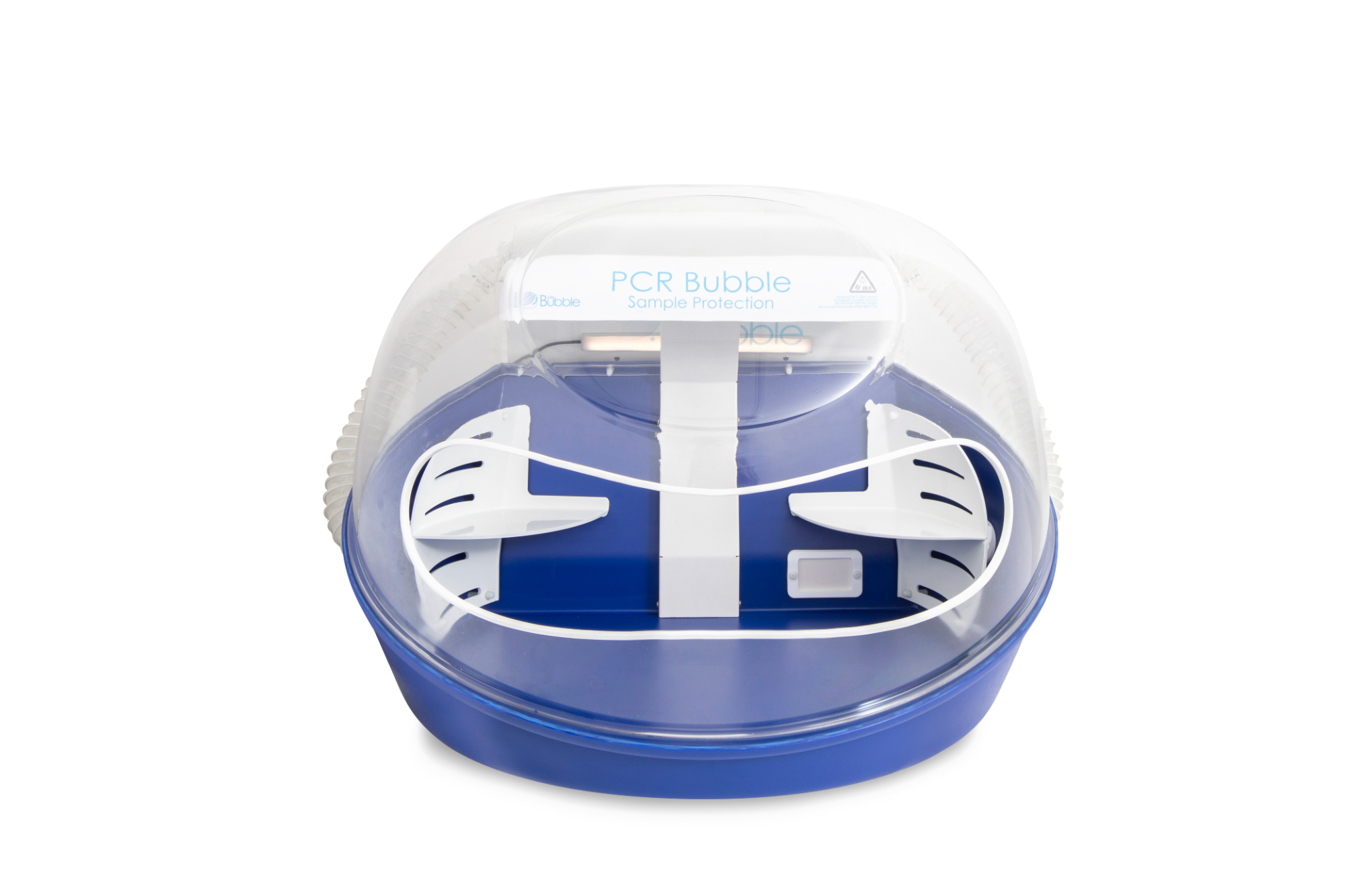

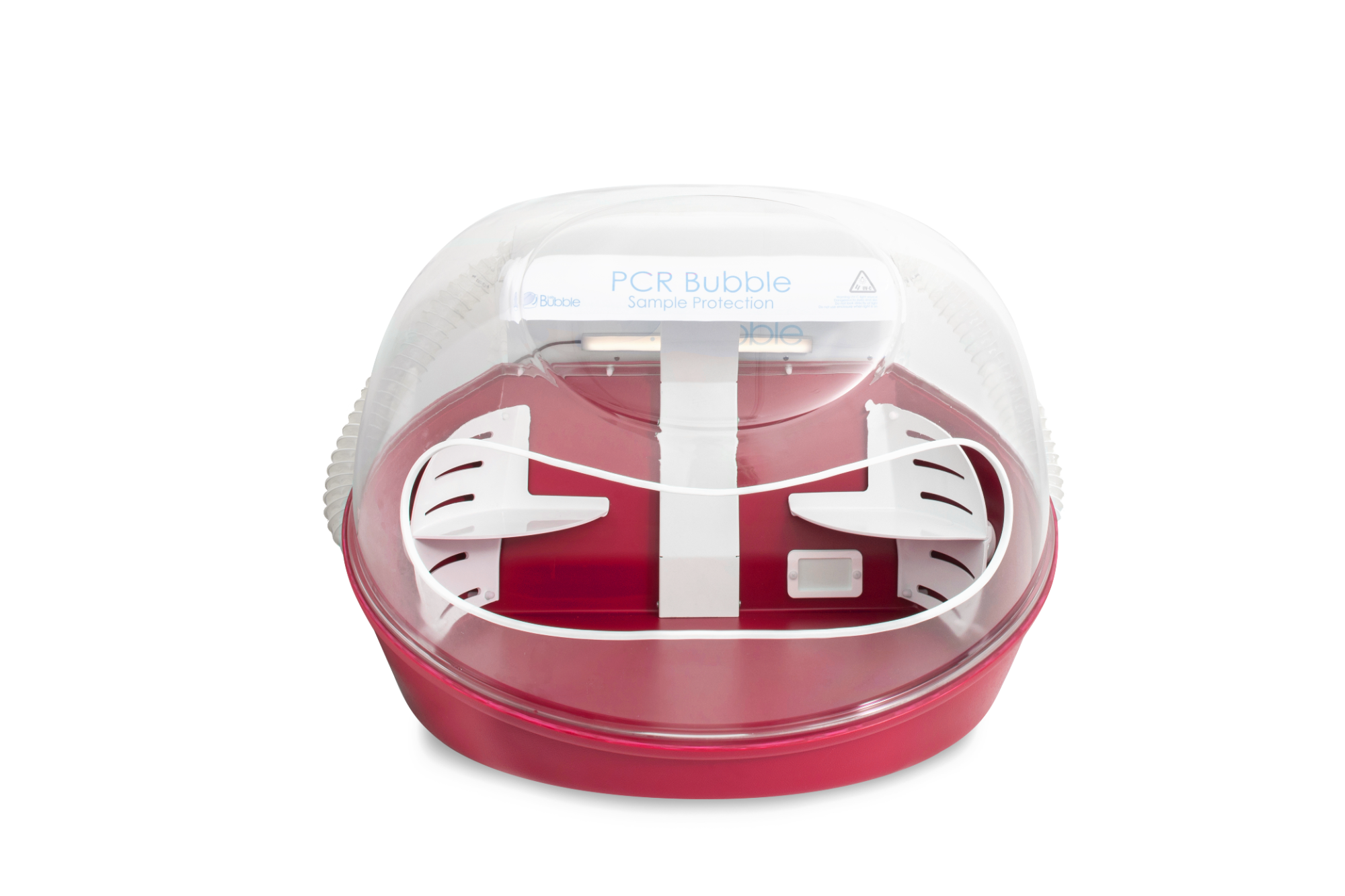

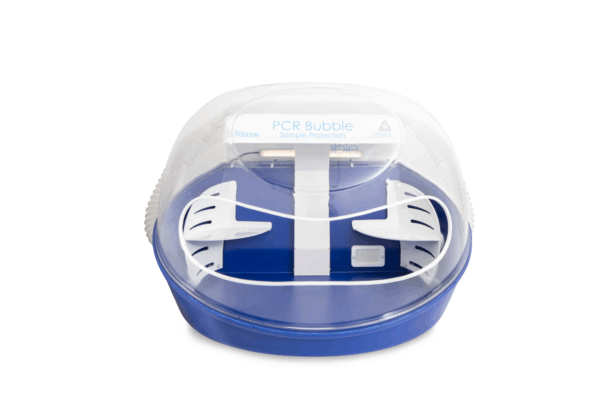

Clean Air PCR Enclosure – PCR Workstation
The Clean Air PCR Enclosure provides a comfortable to use, easy to clean, HEPA filtered clean air workstation for the preparation of PCR reagents.
The integrated UV-C Germicidal Lamp provides effective biodecontamination.
- ISO Class 5 Clean Air Environment
- UV-C Lamp as Standard
- Ergonomic Design
- Pre Tested and Validated
- Easy to Clean and maintain
- PCR Hood is Easy to install
The Clean Air PCR Enclosure is an easy-to-install laboratory portable workstation for polymerase chain reaction (PCR).
PCR is a widely used technique in laboratories specifically working with DNA and RNA and it consists in multiplying specific DNA regions from samples, so that they can be studied in more detail. However, PCR is highly sensitive and contaminated amplicons can result from carryover or cross contamination.
The Clean Air PCR Enclosure provides an enclosed environment for the handling of these sensitive PCR reagents, reducing the risk of sample cross contamination during the PCR experimentation.
The PCR Hood operates as a positive pressure HEPA filtered system that creates a continual ISO Class 5 clean air blanket over the sample preparation area.

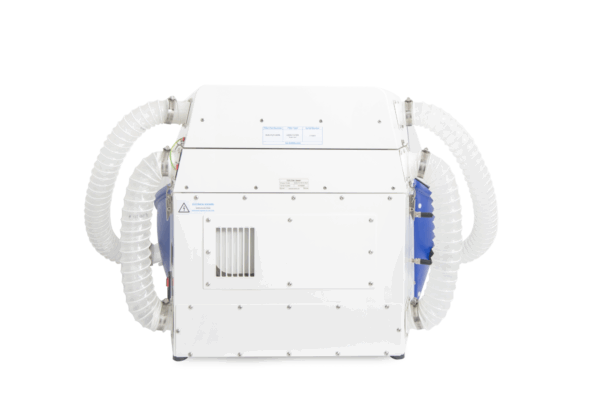

During the operation of this laboratory safety enclosure, air is taken from the laboratory and filtered through a 2 stage filter system into the cabinet and back out to the laboratory, and the laminar flow is monitored continuously to ensure that no airborne contaminants can enter the Clean air enclosure.
In addition, the PCR station also features a UV-C germicidal lamp tested to ensure a proven 254nm wavelength for bio-decontamination, in other words, prevention of bacterial growth, before and after use.
The Clean Air PCR workstation is a lightweight and portable PCR workstation with an ergonomic design, therefore, it can be easily moved from one bench to another and it also offers maximum comfort for the analyst.
Performance: ISO Class 5 Clean Air Environment, UV-C Germicidal Lamp (254nm)
Airflow: 0.40m/s Face Velocity, Factory Calibrated
Alarm: Hot Wire Sensor -Audible/Visual
Filtration: Two Stage HEPA Filtration System, Proven to H14 standard EN 1822
Filter Life: 2-3 Years Safe Change Design
Power: 90-240V 1ph 50/60hz Load 1.0A
Base: 10mm Chemically Resistant, Process Modified Polypropylene
Top: 6mm Chemically Resistant, Impact Modified Acrylic

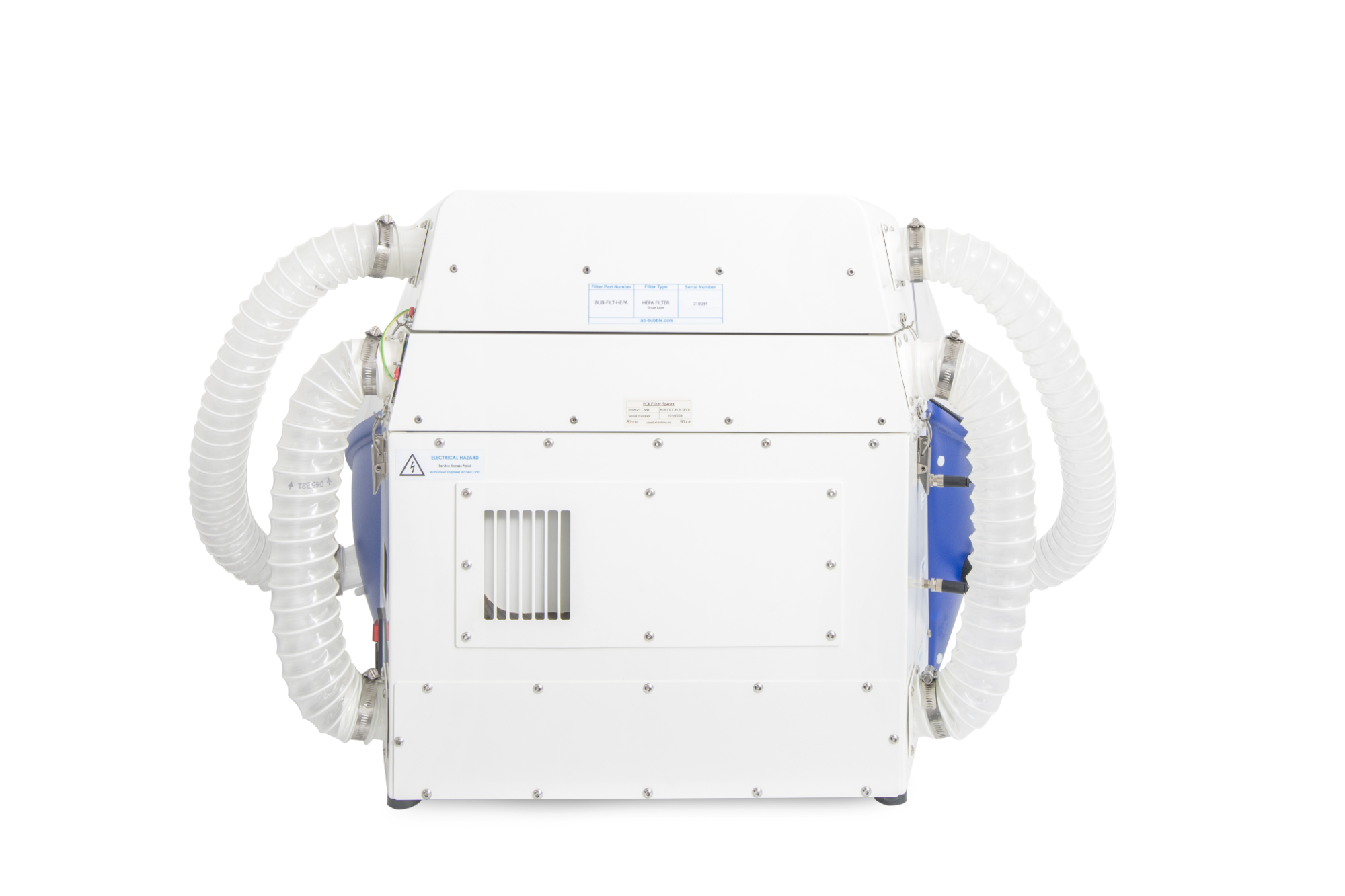

Extract Unit: White Powder Coated Steel
Filter Module: White Powder Coated Steel
UV-C Lamp: White Powder Coated Steel
This PCR workstation can be installed by the user therefore no engineer is required.
The Clean Air PCR Enclosure comes pre-validated and tested.
Documentation Pack Provided, No Facility Air Supply Required.
